Specification
Feature Highlights
o Express RIP support 1 bit or 8 bit Tiff.
o Express RIP can also output BMP in 1, 2, 3, 4 , 8 bit format.
o Native support for PDF 1.6 through to PDF 2.0, also PDF/X-1a,
PDF/X-3 and PDF/X- 4, PDF/VT
o Choice of raster and vector in-Rip trapping options.
o Supports multiple input channels - NT Print, NT Pipe, Spool
folder, Socket TCP/IP, and Serial port.
o Compose offer services to create customer’s defined format.
o High performance simultaneously RIP and print, multiple RIPs
solution for heavy duty production system.
o Improved multi-threaded rendering for multi core technologies,
ensuring it can keep up with all the highspeed printing heads such
as Kyocera and Fuji Samba.
o Multiple screening options, including 2 bit and 3 bit screening
for modern Inkjet heads.
o Compose provides support well over 200 output devices including
modern Inkjet heads and different unique interfaces.

High Performance
Express RIP can be multi-threaded, allowing different tasked to be
performed simultaneously. Multi threads allow the RIP to execute
PS/PDF rendering, and at the same time carry out transparency
combination, trapping and output to Print devices at the same time.

Alternatively, it can be used to process multiple pages
simultaneously to achieve parallel pages processing.

Express RIP is also equipped with an advance feature to support
Variable data printing when there is a static background. Only the
variable data element is processed one record at a time. By saving
the time to rip the static background, one can gain a lot of
productivity time using this method particularly in Label Printing.


Advanced Screening Technology

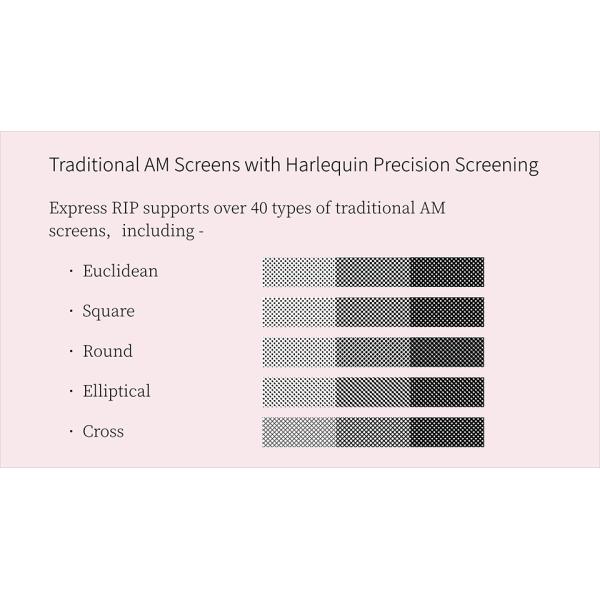

Harlequin Precision screening (HPS) – it is a traditional screening
technology with a clear rosette in the view, showing how the CMYK
dots are placed. Harlequin has many screening pattern available for
different type of printing requirement.

Harlequin Disperse Screening (HDS) - a screening technology that
minimises the moiré patterning effect from color separations output
to ensure high quality reproduction with any screening option in
the RIP. Compose can provide 1 bit Tiff, or 2 bit, 3 bit screening
and driver to suit customers requirement.

Express RIP can also support Inkjet Printing by offering 2, 3, 4
bit dots, this time it is called by Super fine, Fine, . . . as
example below.

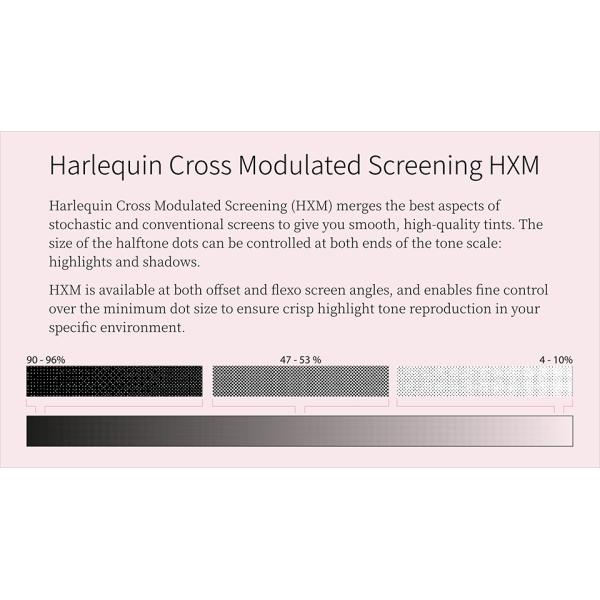

To some advanced users, they may prefer to use HXM screening for a
better definition on images. Samples on how it would look like is
better demonstrated on the picture below.

Color management
Express RIP provides excellent color control to ensure consistent,
accurate and predictable color reproduction. Users can create ICC
profiles using ColorPro or can use pre-configured ICC profile
plug-ins that Compose has developed for a variety of devices.
Support Multiple linear curve in 2bits, 3 bits and 4 bits dots.
Support different linear value by individual corrections
Support each primary color curve with individual corrections.

Using 4 different curves for adjustment
1. Using the linear curve for gray color calibration on the Press
machine
2. Using color curve to re-define certain color requirement.
3. To adjust to reflect the dot gain by the press machine.
4. To adjust to linear curve to adjust the dot gain by the press.

Support 4 color, 6 color and N ciolor curve calculation.
Support Xrite Spectro drive instruments.
Allow self-defined linear curve value.



Define your own color rendering Intent
Coloring intend can be adjusted depending on requirement
like increasing/decreasing a certain color intent
Adjusting the ink dot value
Changing the Black generation method.

Spot color matching
This feature is a most popular request by Label Printers, Compose
provides a Spot color matching solution, called Spot Matcher which
is tie with the RIP color tablet. Spot Matcher allows users to
define Spot Color visually or by measurement device, making it
quick and easy to obtain an accurate value.


Express MultiBit Output


In-RIP trapping
Choice of vector and raster based in-RIP trapping options to
automatically trap PostScript and PDF files as they are ripped.
Variable Data Printing
Compose Variable data printing engine, Velocity, is designed
specifically for digital Printing, it can support variable printing
for text, images, Color, Bar codes, QR codes, and logic expression.

Localization for different countries
Compose has a unique interface solution for any of the licensee to
have their own identification for their front end, including
localization for different languages, such as Chinese, Japanese,
Korean, Spanish, Italian.
Support over 200 Output Devices around the world.
Supports over 200 output devices such as imagesetters, plate
setters, large format inkjet plotters and high-speed Inkjet
printers currently in the market.
